Summarize

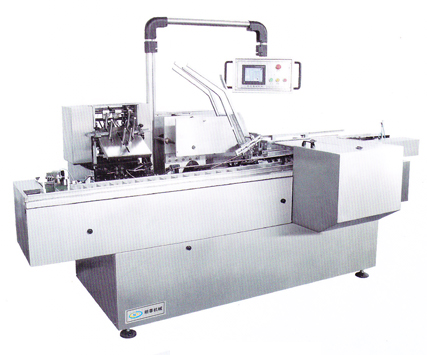

It is suitable for packing pharmaceutical aluminum plastic and other relared similar content compact with automatic fish folding, fotming. Opening and loading, batch number printing as well as sealing tec percesses. It adopts PLCbcoontrol, photoelectrictry supervision to coordinate with every parts once something unexpected happens when its operating. It can stop and display the reasons automaticallly. It is convenient to solve the troubles in time this machine can be used seprately, and also can used with other blister packing Machines.
|
 |
Main Technical Parameter
| Eletric power |
AC380V three-phrase and five-wire 50HZ total power 1.5 kw |
| Production capacity |
Rotation speed-50-100b/min Speed of folding machine: 50-100b/min |
| Volume of consumption |
20m2/h ( prrssure 0.5-0.7Mpa ) |
| packing material |
Box: 250-3000g/m2 ( according to its dimensins to confirm ) |
| Specifications:max.Size ( LxHxW ) 200x90x60 mm |
| Min Size ( LxHxW ) 55x20x15 mm |
| leaflet |
Paper weight: 55-80 g/m2 |
| Specifications:max.Size ( LxW ) 260x190 mm |
| Min.Size ( LxW ) 100x100 mm |
| Overall dimension ( mm ) |
3300x1600x1800 |
| Weight |
Approximately 1.2tons |
|
|
